Model: CSHS8CIPU/B
Load: 460 kgs
Dimensions:
H 235 mm
D 200 mm
Description:

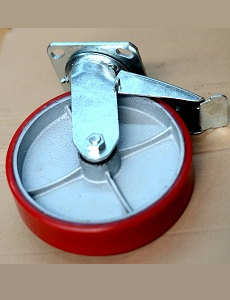

Heavy Duty Castor Swivel with Brake and Polyurethane on Cast Iron Wheel 8"
Wheel Diameter : 200mm;
Width of Tread : 50mm;
Size of Plate : 115x100mm;
Plate Hole Spacing: 85x73mm;
Plate Hole Diameter : 20 x 11mm;
Overall Height : 235mm;
Static Load Capacity per CASTOR : 460kg
